The two USB-C connectors

The board has two USB-C ports. They are not interchangeable:

Port (silkscreen)	Wired to	Use it for
COM	CH343 USB-UART bridge → ESP32-S3 UART0	Development: flashing, serial log. Connect to your controller/dev PC.
USB	ESP32-S3 native USB (GPIO19/20)	Target: this is the keyboard/mouse (and the read-only boot drive, see below) the target computer sees. Connect to the target.

Evidence from this repo’s development host: with only the COM port connected, Linux reports 1a86:55d3 QinHeng Electronics USB Single Serial (a WCH CH343) and creates /dev/ttyACM0. That matches the COM port. The silkscreen names above are from the board vendor’s documentation; confirm them on your board (the label next to each connector) before relying on them.

Rules

1. Target gets the USB port. In normal operation only the USB port is connected, to the target. The board is powered by the target.
2. Do not plug the USB port into the machine you are developing on while the self-test is flashed: ~8 s after boot the board types HELLO FROM KVM, presses Enter and moves the mouse on whatever machine it is plugged into. Use a separate target, or leave the USB port unplugged while you flash.
3. During development you may connect COM to your dev PC and USB to a test target at the same time. Both ports can power the board; if your board revision has a power-selection jumper/solder pad, check it before connecting two different computers at once (two hosts feeding 5 V into one board is best avoided). This has not been verified on rev 2022-v1.3 — check the board’s schematic or just power via one host.
4. The firmware keeps its console on UART0 (COM port) on purpose, because the native USB peripheral belongs to the HID device.

Buttons

• BOOT (GPIO0, read by the firmware at run time):
  • short press (< 3 s): open the pairing window for 300 s (a 15 s window also opens by itself at every power-on or RESET; with a bond stored, crash/watchdog reboots do not open it);
  • hold 10 s: erase the bonded controller and reopen the window (LED shows progress, below);
  • hold it while pressing RESET: ROM download mode (hardware behaviour, unchanged).
• RESET (EN): reboots the chip; the USB device re-enumerates on the target and the adapter comes back with its last configuration (name and bond are stored in flash). Like a plug-in, it opens the 15 s pairing window.

Status LED (on-board RGB, GPIO48 — verified on this board 2026-10-03; set

CONFIG_KVMIT_LED_GPIO to -1 or another pin if a different board stays dark)

LED	Meaning
white, steady	booting
blue, fast blink	pairing window open — a controller may pair now
blue, brief tick every 1.5 s	a controller is bonded; waiting for it to connect
magenta, brief tick every 3 s	nothing bonded and the window is closed; radio is quiet — press BOOT
green, steady	controller connected, encrypted and handshaken
brief white flash	an input command was just applied
amber blip every 2 s (on top of anything)	the target has not enumerated the USB port (cable, power, suspend)
yellow, blinking faster, then solid (BOOT held ≥ 3 s, solid at 10 s)	trust reset in progress; release before 10 s to cancel
red, 3 flashes	trust erased
red, fast blink	BLE failed to start (USB HID still works)

Colours are intentionally dim (≤ 40/255).

Building the firmware yourself (developers)

You do not need this to use kvm-it: the app flashes the adapter for you (below), with the firmware inside it. This is for people changing the firmware. See also building from source.

Requirements: podman (or set CONTAINER_RUNTIME=docker). Nothing else is installed on the host. The toolchain is the pinned image docker.io/espressif/idf:v5.5 (override with IDF_IMAGE).

git clone https://github.com/spilloid/kvm-it && cd kvm-it
scripts/fw.sh test      # host unit tests (no hardware needed)
scripts/fw.sh build     # first build downloads esp_tinyusb from the ESP component registry

Serial-port permission (one-time)

/dev/ttyACM0 is root:dialout mode 0660. Your user must be in dialout:

sudo usermod -aG dialout "$USER"     # then log out and back in

Quick temporary alternative (resets on replug/reboot): sudo setfacl -m u:$USER:rw /dev/ttyACM0. If usermod reports the group is missing, getent group dialout shows whether it exists on your host (it does on the development host, with no members).

Group membership only applies after a fresh login. sg dialout -c scripts/fw.sh ... does not work with rootless podman (user-namespace mapping fails). Until you re-login, flash with a host-side esptool: python3 -m venv .venv-esptool && .venv-esptool/bin/pip install esptool then, from firmware/build, sg dialout -c ".../esptool --chip esp32s3 --port /dev/ttyACM0 -b 460800 write-flash @flash_args". This is how the first flash was done on the development host (hash-verified).

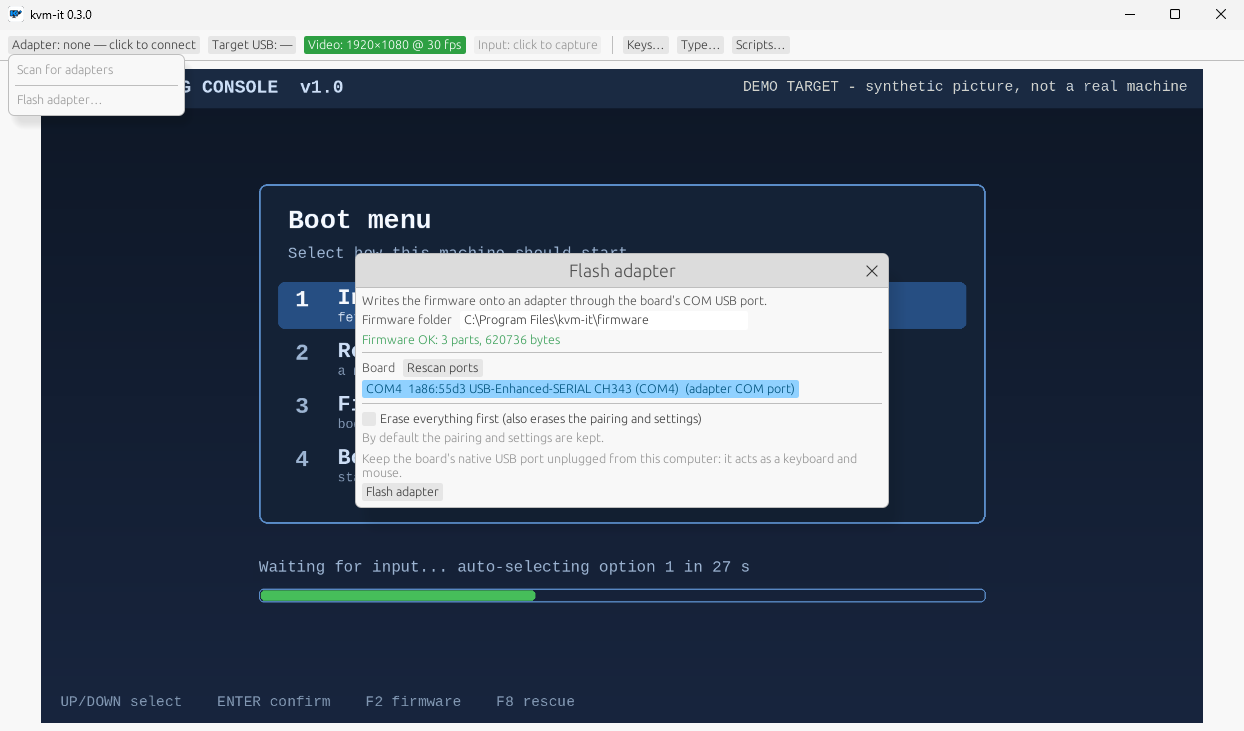

Flash from the app (0.3.0)

The controller can flash the adapter itself, on Linux and Windows, with no ESP-IDF install:

1. Plug the board’s COM USB port into the computer. Keep its other (native USB) port unplugged: it is the keyboard and mouse and would type into this computer. The app refuses to flash while it can see any Espressif USB device (303a:*) attached, because an adapter’s own USB port cannot be told from other Espressif boards (and looks generic in download mode): unplug other ESP boards too.
2. GUI: Adapter chip > Flash adapter…; or CLI: kvmit flash --list, then kvmit flash. The firmware that ships with the app (a firmware folder next to the program, from firmware/release in the repo) is used by default; set KVMIT_FIRMWARE or pass --firmware <dir> (a folder with flasher_args.json and the three images, e.g. firmware/build) to use another.
3. By default only the bootloader, partition table and app are written and the pairing and settings are kept. The tool checks, from the board itself, that the settings stay where they are. --erase-all (GUI: the tick box plus a second confirmation) erases everything including the pairing; pair again afterwards.
4. It checks before writing that the chip is an ESP32-S3 with 16 MB of flash, and verifies what it wrote. A flash cannot be interrupted safely: do not unplug the board or close the app while it runs. If it fails or is interrupted, just flash again (the chip is put into its bootloader by the COM port itself; this recovered a write killed halfway through the app on 2026-10-04). Only if the board is not found, hold BOOT while plugging the COM cable in.

Flash and watch

scripts/fw.sh flash                # defaults to /dev/ttyACM0; or: scripts/fw.sh flash /dev/ttyACM1
scripts/fw.sh monitor              # Ctrl-] exits
# or both:
scripts/fw.sh flash-monitor

If the device node is different (ls /dev/ttyACM* /dev/ttyUSB*), pass it as the second argument.

The boot drive (firmware 0.2.0)

The USB port can also present a 4 MiB read-only mass-storage drive (a third USB interface, after the keyboard and mouse, so the two boot-protocol HID interfaces keep the numbers BIOS/UEFI expects). It holds an EFI system partition with the iPXE project’s signed Secure Boot pair (a Microsoft-signed shim as EFI/BOOT/BOOTX64.EFI, iPXE-CA-signed EFI/BOOT/IPXE.EFI) and an autoexec.ipxe script. It lives in its own flash partition (ipxe, 4 MiB at 0x110000); the settings partition (and so the pairing) has not moved, so existing adapters upgrade in place.

• Off by default. Turn it on in the app (Adapter popup > Boot drive) or with kvmit boot-drive on; the adapter stores the setting and restarts, because the USB descriptor is fixed for a session (the target sees it re-plug). Off, the adapter presents two interfaces (keyboard, mouse); on, three (plus the drive). The USB product id is 303a:400a in both states (it was 303a:4008 before firmware 0.2.0), so tell your tooling by interface list, not by product id. The setting is remembered across power cycles and re-flashes (only --erase-all clears it).
• Read-only: the drive reports itself write-protected and the firmware refuses every write.
• UEFI only. Pick the “kvm-it” entry in the target’s boot menu. Legacy BIOS is not supported: the disk’s boot sector just hands over to the next boot device (INT 18h), and no partition is marked active, so a legacy BIOS that tries the drive should move on instead of hanging (untested).
• Inert by default: the script on the drive waits five seconds for a key press and otherwise exits with a failure status, so a target that boots USB first carries on.
• Secure Boot can stay on where the firmware trusts Microsoft’s third-party UEFI CA: the shim and iPXE are signed (run in a virtual machine with the stock Microsoft keys; not yet on a real PC, and some locked-down PCs turn that CA off). With it on, iPXE refuses unsigned kernels and images.
• Linux host: with the drive on, it shows up as a write-protected /dev/sdX; sha256sum of the whole disk equals firmware/ipxe/ipxe.img.
• Serial log lines (usb_msc, usb_hid) say whether the drive is on, when the target configures the device, and when it first reads the drive.
• Provenance, licence and how to rebuild the image: firmware/ipxe/README.md.

Verification checklist — please report back

Already hardware-verified (2026-10-03): flash over COM; USB enumeration (lsusb: 303a:4008 on firmware 0.1.0, keyboard + mouse boot HID; firmware 0.2.0 is 303a:400a whether the boot drive is on or off); the old M2 self-test typed. The 0.1.0 firmware no longer types at boot (self-test is the KVMIT_SELFTEST option, default off).

Hardware-verified 2026-10-03 (Surface Laptop 4, Intel AX201, BlueZ 5.x; board on COM only, USB port not on a target): boot log, BOOT short press opening the window, kvmit scan, kvmit pair (“paired and connected”, LE Secure Connections bond), and kvmit status (protocol v1.0, firmware 0.1.0, 90 ms round trip) including a bonded reconnect. Items 1, 3 and 4 below are done except the “target USB enumerated” part of 4.

Still unverified on hardware until you report:

1. Boot log over COM: BLE ready, trusted controller none, pairing window open for 300 s, advertising. (Verified.)
2. LED behaves per the table above (fast blue while pairing). If dark, GPIO48 is wrong for this board. (Verified 2026-10-03: fast blue in the pairing window; the trust-reset sequence below. Other states not individually checked.)
3. Pair: kvmit pair on a Linux controller within 15 s of power-on (or after a BOOT press) → “paired and connected”. (Verified.)
4. Status: kvmit status shows target USB enumerated, a round trip time, firmware 0.1.0. (Verified except target USB, which needs the USB port on a target.)
5. Type: with the USB port on a target, kvmit type "hello" and kvmit key ctrl alt delete work. (Verified 2026-10-03 into a Windows 11 target: every printable US-ASCII character, chords Win+R and Ctrl+N, Enter/Escape; Ctrl+Alt+Del not sent. Read back through the capture card. If the target sleeps or locks mid-test, keys go to the lock screen: disable sleep on the target first.)
6. Reconnect: unplug/replug the adapter; kvmit status reconnects with no pairing step. (Verified 2026-10-03: physical replug and many COM-triggered power-on resets.)
7. Stuck keys: hold a key via the GUI capture then kill the app (kill -9): within ~5 s the target’s key releases. Disconnecting Bluetooth releases immediately. (Verified 2026-10-03 with kvmit key --hold 60s k killed by kill -9 after 2 s, BLE link left up: autorepeat into Notepad stopped ~3.2 s after the kill (146 characters at the measured 31/s), count unchanged at +8.6 s and +21.5 s, i.e. the firmware keepalive released it.)
8. Trust reset: hold BOOT 10 s → LED yellow ramp, three red flashes, fast blue; a second controller can now pair. (Verified 2026-10-03: LED sequence as described; log erasing BLE trust, 300 s window; the controller’s old keys are then rejected (0x205) and it pairs afresh.)
9. BIOS/UEFI (if available): keyboard works, and report whether the 5-byte mouse report is accepted.
10. GUI (kvmit): connect, capture keyboard/mouse, Ctrl+Alt+Esc releases; with a capture card, video shows.

BLE troubleshooting

• Opening the COM port resets the board (the CH343’s DTR/RTS lines drive EN/IO0). That reset closes a BOOT window but opens the 15 s power-on window, so pair right after opening the serial monitor, or press BOOT.
• The controller PC can’t see the adapter (kvmit scan empty, phone sees it): check the PC’s scanner before the firmware. Run sudo btmon -w /tmp/bt.log during bluetoothctl --timeout 20 scan le and count LE Advertising Reports with btmon -r /tmp/bt.log. A healthy scan in a normal room gets hundreds in 20 s. On the development laptop (Intel AX201) the controller once got into a state where it passed up ~5 % of reports and missed every strong advertiser nearby; sudo btmgmt power off && sudo btmgmt power on fixed it.
• Diagnostic firmware — scripts/fw.sh build-diag builds into firmware/build-diag/ with sdkconfig.diag (observer role + CONFIG_KVMIT_RADIO_DIAG). At boot it logs the stored bond(s), passively scans for 15 s and prints every advertiser with min/avg/max RSSI, then starts normally. To measure the PC→adapter path, make the PC advertise the marker first: sudo btmgmt add-adv -d 0CFFFFFF4B564D495444494147 1 (manufacturer data KVMITDIAG); the board flags that line with <<< KVMITDIAG HOST. Remove with sudo btmgmt rm-adv 1. Never ship a diagnostic build.
• Panics on connect: decode with xtensa-esp32s3-elf-addr2line -pfiaC -e <elf> <backtrace addrs> inside scripts/fw.sh shell. See the NimBLE slave_conn note in firmware/sdkconfig.defaults for the one found so far.

HDMI capture card notes

Verified 2026-10-03 with a MacroSilicon 345f:2109 UVC card (MJPEG, up to 1920x1080) on /dev/video5: kvmit video list lists it and kvmit video snap --path /dev/video5 out.png saves a 1080p frame of the source.

• “No signal” looks like a flat dark frame, not an error: every pixel at luma 22. Check with ffmpeg -i out.png -vf signalstats,metadata=print -f null - (YMAX=22 means no signal).
• The card may only lock onto a source that appears after it started. If the source shows the card as a display but frames stay flat, replug the card (or echo 0 > /sys/bus/usb/devices/<port>/authorized, then 1).
• The source must actually drive HDMI: on Windows, Win+P → Duplicate.
• Most of this card’s MJPEG packets can be empty (~92 % in one test). kvmit skips them; stock ffmpeg aborts on its default decode-error rate, so any ffmpeg pipeline must tolerate or filter empty packets.

Known hardware unknowns

• Keyboard SET_IDLE retransmission is not implemented (hosts normally generate their own key repeat); if a BIOS fails to auto-repeat held keys, that is why.
• Mouse report is the TinyUSB 5-byte (buttons, X, Y, wheel, pan) descriptor in a boot-protocol interface. Some BIOSes only accept 3-4 byte boot mouse reports. If item 6 fails for the mouse, the fallback is a boot-compatible 4-byte report; the keyboard is unaffected.
• VID/PID: the firmware uses esp_tinyusb’s default Espressif identifiers. Before any public release a proper VID/PID allocation is needed (see roadmap).
• PSRAM (8 MB octal) is not enabled in this milestone.
